RANGER CREW XP 1000 NorthStar Edition Ultimate Polaris Pursuit Camo Specifications

Find specifications below for the 2023 Polaris RANGER CREW XP 1000 NorthStar Edition Ultimate Polaris Pursuit Camo UTV. Specs include payload capacity, hitch type, towing capacity, engine, horsepower, ground clearance, turf mode, bed capacity, person capacity, instrumentation, tires, suspension and cargo system.

Change Model

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
999cc
Drive System Type
High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System (EBS)
Not Equipped
Engine Type
4-Stroke Twin Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
82 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Box Capacity
1,000 lbs (453.6 kg)
Estimated Dry Weight
2,387 lbs. (1,083 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14 in (35.6 cm)
GVW
3,750 lb (1,700.9 kg)
Hitch Towing Rating
2,500 lbs (1,133.9 kg)
Hitch Type
Standard 2 in (5.08 cm) Receiver

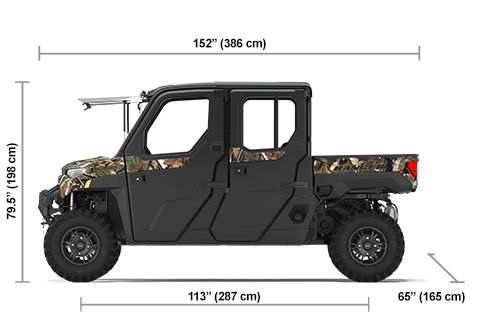

Overall Vehicle Size (L x W x H)
152 x 65 x 79.5 in. (386 x 165 x 202 cm)
Payload Capacity
1,150 lb (522 kg)
Person Capacity
6
Wheelbase
113 in (287 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Standard
Cargo System
Lock & Ride®
Color / Graphics
Polaris Pursuit Camo
Electronic Power Steering
Standard
Instrumentation
Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets, 1 USB Charge Port
Lighting
Dual LED Headlamps, 1250lm Low Beam, 2300lm High Beam, Dual LED Taillamps
Other Standard Features
Polaris HD 4,500 Lb. Synthetic Rope Winch with Autostop and Wireless Remote, Premium Pro-Shield Cab, Doors with Power Windows, Tip-Out Glass Windshield with Wiper, Rear Glass Panel, Dome Light, Rearview Mirror, Heat, AC, Defrost, Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System with 6-Position Underhood Busbar and 6-Position Roof Busbar, Standard In-Dash SAE Charge Port, NFC Front Badge
RIDE COMMAND+
Available
Tilt Steering
Standard

Tires / Wheels

Front Tires
29 x 9-14; PRO ARMOR X-TERRAIN
Rear Tires
29 x 11-14; PRO ARMOR X-TERRAIN
Tire Ply Rating
8 Ply Rated
Wheels
14 in. (35.6 cm) Aluminum

Suspension

Front Suspension
Dual A-Arm 10 in. (25.4 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10 in. (25.4 cm) Travel
Turning Radius
17 ft (518 cm)
82
HP
65"
WIDTH
14"
GROUND CLEARANCE
